PRESSURE
Model 206 Known for their rugged construction and reliability, Setra's Model 206 pressure transducers and transmitters exhibit resistance to shock, vibration, temperature and EMI/RFI. These transducers are available in full scale pressure ranges from 25 psig to 10,000 psig.
PDF
Model 209 Priced aggressively, these transducers meet the most demanding performance requirements of fuel cell applications. The stainless steel/Valox housing provides a rugged, lightweight package designed to withstand the most stringent conditions. A variety of pressure ranges are available: gage, sealed gage, and vacuum.
PDF
Model 230 This wet to wet differential pressure transducer provides a high output for your fuel cell without compromising your budget. Unlike fluid filled sensors that can rupture, the Model C230's wetted parts are all stainless steel. Unidirectional and bi-directional ranges are available from ±1 to 100 psid.
PDF
Model 231 Multi-Sense, Wet-to-Wet, Differential Pressure Transducer: The Model 231 "all in one" design provides users with field accessible ranging, choice of output and field zeroing. Choose from three configurable pressure transducers offering 8 switch selectable pressure ranges from ± 5 psid up 50 psid, ±10 up to 100 psid or ±25 up to 250 psid, and choice of 0-5 VDC, 1-5 VDC, 0-10 VDC or 4 to 20 mA output in each transducer.
PDF
Model 256 The Model 256 is packaged in an aluminum enclosure, which has been specifcally designed for weatherproof service. Available in a wide variety of gauge pressure ranges, the Model 256 is only 3.7" high x 3.5" wide and operates on a low cost unregulated power supply.
PDF
Model 264 Setra's versatile low differential pressure transducers are widely used in the accurate measurement of pressures and flows for proper building pressurization and air flow control. Optional accuracies of ±0.4% FS and ±0.25% FS are available as well as the standard ±1.0% FS accuracy. Pressure ranges as low as ±0.1"WC up to 100"WC are standard, with10 PSI overpressure on all ranges.
PDF
Model 265 At ±1.0% Full Scale accuracy (±0.4%, ±0.25% FS optional), Setra's Model 265 provides superior positive and negative pressure sensing required for high efficiency, air-control systems. An optional snap-on conduit enclosure, molded from high impact Lexan®, is avaialble.
PDF
Model 267 (Available with optional LCD display.) - These units sense gauge and differential pressure and are offered with a high level 5 VDC or 10 VDC output as well as a 4-20 mA output. The Model 267 is available with an optional LCD display for convenient viewing of pressure reading.
PDF
Model 267MR Model 267MR: Up to 6 field selectable pressure ranges (bi-directional and unidirectional) in each unit. The simple flip of a dipswitch enables the user to easily field calibrate the unit with minimal effort. These units sense gauge and differential pressure and are offered with a field selectable high level 5 VDC or 10 VDC output as well as a 4-20 mA output.
PDF
Model 269 Designed for high performance applications uch as those found in critical medical and pharmaceutical environments. This unit is offered in a din rail or base mount version and features easy to access pressure ports and electrical connections. Pressure ranges are available in ranges as low as 0.1 inW.C. up to 10 in. W.C full scale. with choice of ±0.25%, ±0.50% or ±1.0% full scale accuracy. In addition, this unit can be configured with an optional visual display for local viewing and 2:1 range turndown.
PDF
Model MRC Designed for Critical Environments, The Setra Model MRC is Setra’s newest differential pressure transducer. Contractors have been waiting a long time to use multi-range products in lab, hospital, vivarium, pharmaceutical and other critical applications; however the questionable performance at low ranges has prevented the use of multi-range products in these applications. Field selectable pressure ranges, selectable analog outputs, a standard LCD, standard accuracy of 0.5% FS PDF
Model MRG The Setra Model MRG is Setra’s newest differential pressure transducer. The Setra MRG is the ideal product for any contractor to stock in their truck; combining the flexibility of a multi-range with the performance of a single- range transducer to ensure that you have the right solution for any job. Field selectable pressure ranges, selectable analog outputs, a standard LCD, standard accuracy of 1% FS PDF

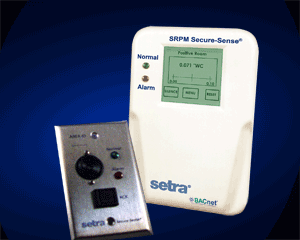

Model SRPM Room Pressure Monitor Pressure monitoring is critical in medical and manufacturing environments that require protection and isolation of living beings and sensitive processes. The SRPM is designed to monitor positive or negative airflow in these environments per CDC guidelines. The SRPM combines Setra's proven and patented very low pressure sensing technology with the latest in electronics. A large graphic RGB back-lit touch screen display allows fingertip access to menus that guide the user through room setup, application, security, and calibration.
PDF
HUMIDITY

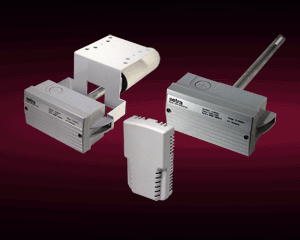

Model SRH Relative Humidity Transmitter Setra's family of humidity transmitters are offered in wall mount, duct mount and outside air unit configurations. Each unit includes a field replaceable sensor tip that allows the end user to replace the sensor on-site, thereby, reducing costly factory calibration and down-time during service intervals. These humidity transmitters combine capacitive sensing technology with Setra's proven customer application specific integrated circuit (ASIC). This unique combination assures reliable control of RH levels from 0 to 100% with available accuracies to 2%, 3%, or 5%
PDF
CURRENT

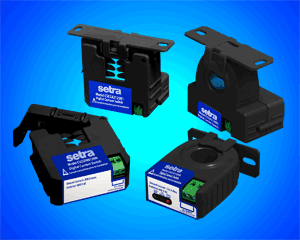

Digital Current Switches Setra's family of Current Switch Clamped (CSC), split core design, and Current Switch Solid (CSS), solid core design, offer an economical approach to detecting small current loads. Utilizing magnetic current sensing technology, these current switches are ideal for electric motors that drive fans, pumps, and blowers, and for sensing the status of heating coils and lighting. These units are offered with fixed and adjustable setpoints as well as snap-on power relays for remote motor stop and start
PDF
